DIY reclaimed lumber hanging Edison bulb chandelier

This DIY reclaimed lumber chandelier with hanging Edison bulbs is easy and quite self-explanatory, though I will explain somewhat. Here’s what you’ll need,

Parts for Fixture

  • piece of lumber
  • 2x lengths of chain
  • 4x open/close chain links, to affix the chain to the eyelets you’ll screw to the board
  • 4x screw eyelets, to secure the chain to the lumber
  • 2x screw hooks, to hook the chain to the ceiling *screwed into solid wood joists
  • one or more junction boxes depending on the size of the wood
  • one or more hanging lights, cord, socket, bulb (see below)
  • a cover for the ceiling junction box plastic or otherwise, you may have to cut a notch for the power cable

Parts for Lights

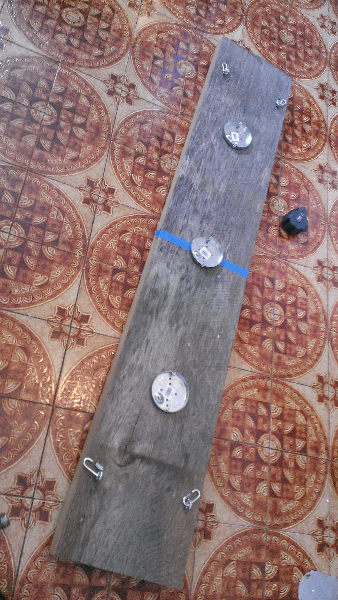

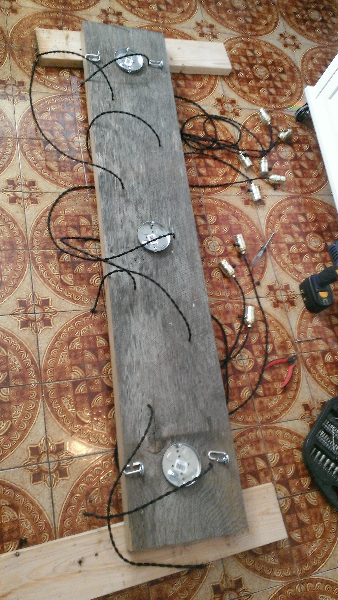

Once you’ve selected your lumber, drill a hole for each light cord. I started with a spacious zig-zag pattern but it’s whatever you like really. Affix junction boxes to the top-side of the lumber and wire the lights into them. Screw an eyelet into each corner of the top-side of the lumber, at least an inch in from any side.

If the lumber is extra heavy you could consider another length of chain and place two more eyelets to support a chain in the center. If ceiling joist placements allows you could also use four lengths of chain straight up to four hooks instead of the swing system I employed.

Screw the hooks firmly into ceiling joists, hang the fixture and wire whichever junction box is closest into the ceiling electrical. If possible the power cable would be less noticeable if it snaked to the ceiling along one of the support chains.

Once hung you can adjust the heights of the hanging bulbs and coil the extra cable on top, it’s not coiled very neatly in some of these pictures but I have since remedied that. There you have it.

If you’re interested in other Edison-style lighting ideas check out DIY steampunk-style iron pipe Edison fixture and the reason I have so many Edison bulbs kicking around, Maker Wedding: Rustic Edison-style hanging light fixtures.

Leave a comment ?

23 Comments.

  1. DIY steampunk-style iron pipe Edison fixture | unmaintained - pingback on March 3, 2014 at 7:34 pm
  2. Reclaimed wood: Not just for a log cabin | homeoperty - pingback on October 9, 2014 at 10:00 am
  3. What wattage are your bulbs

  4. hi, do you have any photos of how exactly you ran the wires to connect all the lights? Any chance to snap a couple quick photos of what’s on top of the light fixture/board? Thanks!!!

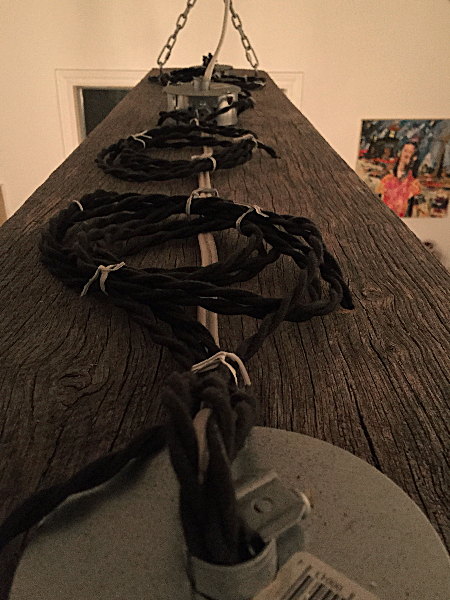

    • I added a photo showing the top side of the fixture. I did not cut the light wires to length as I may use them in another project down the road. I coiled them neatly and just used some twist-ties to secure them.

  5. What are the measurements on your lumber? I really like the overall scale and composition of the piece. Well done!

  6. How much of the twisted cotton wire did you end up using for your light!

  7. Can you tell me details on the larger white electric wiring on the light. My husband and I are trying to build this today. Any tips would be greatly appreciated. Any problem with doing a plug end instead of hardwiring into electrical?

  8. Also I meant to ask Do they have to be three-way sockets since the bulbs are only regular non-three-way bulbs?

    • No problems with using plugs at all. Grounded sockets are always better, but are not required for these lights as they are indeed not grounded (two-wire). The larger wiring is just standard Romex household wiring, usually it’s behind drywall or whatnot.

  9. How far is your board from the ceiling?

    • The top of the board is 10″ from the ceiling. This measurement is going to depend heavily on your ceiling height, lumber size, room size, desired look, etc.

  10. Well I finished mine!! Thanks so much for the inspiration! Any way to post or show you a pic of my finished product?

    • Courtney, I’ve added an image uploader to the post so that you can share and image or two of your results. Thanks for reading!

  11. Christian Montecillo

    Phil, this is so awesome! I’m doing this to my home in the next couple of weeks. I’ll let you know how it turns out!

    Question regarding the light socket: why did you go with the 3-way socket? Any reason why I couldn’t something like this: http://www.amazon.com/KINGSO-Industrial-Vintage-Pendant-Without/dp/B019GPO7SK/ref=sr_1_2?ie=UTF8&qid=1458861153&sr=8-2&keywords=brass+light+socket
