Fiber optic starry sky nursery

Getting a house ready for a new baby is no small task, there’s really no end to what one may consider essential, such as a fiber optic star-filled ceiling for the nursery. There’s nothing more comforting to an infant than the feeling that they’ve been left in the woods under a wondrous, awe inspiring, night sky — no?

Thankfully there are some great products available to convey just that feeling with the use of fiber optic cabling. Wiedamark offers a number of kits as well as the separate components, which are basically bunches of fiber optic cabling and a light source or illuminator. I opted for their 288 3 Star LED Fiber Optic Star Ceiling Kit With New Dimming Feature, it comes with everything you need for a drywall install (aside from tools) and includes 3 different diameters of fiber optic cables which translate to different sized stars or planets.

While waiting for the kit to arrive my wife and I decided on a night sky to represent. Our first child is due in December so we chose the night of the Winter Solstice this year, December 21st, 2014, or at least what the night sky should look like barring some unforeseen astronomical event. There’s some handy sites online you can use to generate a star map on which you can base the ceiling. We used Your Sky which generates images based on date, location and a number of useful options. The easiest way to get your latitude and longitude if you don’t already have it is to find your home on Google Maps and grab your lat/long from the address bar, it will look something like this 43.650033,-79.391594. Positive latitudes, the first number are North and negative are South. Positive longitudes, the second number, are East and negative are West. So when using the above coordinates in the Your Sky interface it would be 43.650033 North by 79.391594 West. You can also turn on and off constellation names and such as well as select what magnitude of objects to display. For printing purposes it’s useful to change the output to Black on white background, if you’re printing in colour this may not be the case. It’s also useful to increase the image size, something around 2400 x 2400 should do.

Once you have a sky that you’re happy with you can right click on the resulting image and select save image in your browser, you’ll end up with an image aptly entitled Yoursky.gif. I decided to divide the image into a grid in order to make it easier to transfer the star positions to the ceiling. This step is completely optional as you can just wing it if you like, create your own constellations and such, though you run the risk of creating an awkward cluster of stars that you’ll end up focused on for years to come.

I won’t go too far in-depth with the install instructions as I’ve recently found another fellow has here, in addition, Wiedamark has a variety of instructions available here. I will, however, outline some of the differences in my approach. You should note I placed the light in my attic, this requires an electrical outlet in the attic, you can also place the light source in a closet or the corner of a room. I also placed the light source in a large plastic storage bin with holes for the power and fiber optic cables to isolate it from the blown insulation in my attic. The light source does need ventilation so ensure any container is large enough for ample airflow and is not sealed.

Two things made my install quite a bit more difficult than a typical install, the first is that the target ceiling, and most of our house, is plaster lath and the second is that our attic has about 3 feet of blown insulation piled on top the 2nd floor ceilings. Step one should have been to clear away the insulation from the ceiling, I was impatient and only did this after I drilled many of the holes and promptly regretted it. Clear the insulation first, everything will go much faster. If you don’t have much space in your attic some good knee pads will go a long way to avoiding aches and pains, you’ll be up there for a while.

The typical method of install for these star fields is to drill through drywall from above and feed the fiber optics down through the drilled hole. Those of you familiar with plaster lath may see a problem with this method — plaster lath enjoys cracking off in large chunks, especially if you’re drilling through from the unfinished side. Because of this I decided to drill up through the ceiling, which reduces the plaster cracking, and insert a placeholder wire into each hole which I could then locate from the attic in order to replace with a fiber optic cable. For the kit I selected I needed three different colours of wire, one for each size of cable/star. I chopped this wire into lengths of 4 or 5 inches, one length of wire for each star. When transferring the star map to the ceiling be mindful of your cardinal directions and take some time to ensure that you’re orienting the map correctly, or not, it doesn’t matter all that much in the grand scheme of things — then again, maybe it is the grand scheme of things!

If you’re dealing with drywall you can skip this entire step, if you’re taking my approach you’ll end up with something like this after drilling and inserting placeholders.

Try to match both the drill bit size and the wire to the fiber optic cable diameter as closely as possible, this will contribute to a clean finished install. I found it difficult to find drill bits small enough, but they are out there.

The next step is to head up to the attic and feed fiber optic cable down through each hole, drilling down if you have drywall and replacing the placeholders if you have plaster lath and have already drilled from below. An LED headlamp helps quite a bit if you don’t have lighting in your attic. The hardest part (aside from back aches and sore knees) is keeping the fiber optic bundles organized, fiber optic cable will craze or crack if bent and that will impede or interrupt the light flow through that cable, so be gentle. It seems easy to pull cables off at first, but eventually everything will be a tangled mess if you don’t take your time to stay organized from the beginning. It helps to first separate the different sized cables into their own bundles. Be sure to push each cable at least a couple inches further than you need through the holes, you’ll clip them flush only after you’ve patched and painted any ceiling defects resulting from the install. Once you’ve placed a star and are sure it’s extended down through the ceiling by a couple of inches then put a dab of glue where it enters the ceiling from above to keep it in place. Use a glue thick enough so that it doesn’t drip through any extra space or along the cable.

This is the most time consuming, frustrating and potentially painful part of the process and is best done in stages. On the upside I bet you never thought you’d find yourself grappling for hours on end with a nightmarish deep sea monster.

Once you’re done running the fiber optic cabling you’ll end up with some trippy, glowing, alien grass growing out of your ceiling, don’t trim it just yet.

Now it’s time to patch and paint over any holes you didn’t use and any other ceiling damage that occurred during the install. It’s important to do this before you trim the cables so that you don’t paint or patch over any illuminated ends. Once you’re done patching and painting you can use flush cut pliers, or even nail clippers, to trim the fiber optic cable flush with the ceiling. After a couple of days and you’re confident there’s nothing left to do in the attic as far as corrections or the like, you can replace any insulation and pat yourself on the back.



Video: Triggering lights with guitar frequency levels

EQTrigger

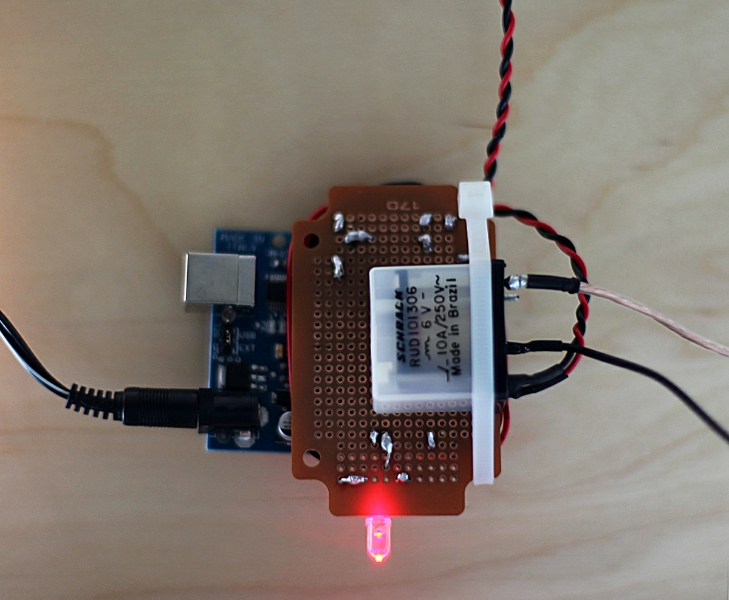

Had an idea after catching this post on Hack a Day, why not use the frequency level values to trip a 120 volt relay? So I ordered some parts and did it. The audio analyzing chip, the MSGEQ7, is easily accessed using DFRobot’s DFR0126, which, being in Canada, I got from RobotShop. Connecting the breakout board to an Arduino Nano was a 5 minute job, sample code and a library is linked from the DFRobot product page. I initially used a potentiometer to input the threshold levels for the relay, but then realized I could use a momentary switch to sample the desired threshold and then use that to compare the real-time input to.

The circuit is simple, when a button (momentary stomp) is depressed, and we all get depressed sometimes, the code saves the input values from the audio analyzer. There are seven frequency bands it records, but I found only three or four of them are applicable to guitar, so ignore the lowest and perhaps the highest two. After a threshold has been recorded simply check the input against the recorded levels and trip the relay (or not).

I gave the thresholds a grace of 5 (on a theoretical input range of 0-1023), I may add a pot for this adjustment as it may vary based on guitar signal types. The result is quite versatile, you could have the relay turn off a mellow light and turn on a spastic light when the signal goes loud. If you pay close enough attention to EQ bands and levels you could trigger various lights based on a variety of guitar effects. This setup would also allow, albeit in a roundabout way, you to engage a guitar effect based on the frequency band levels, as long as the effect will pass-through without power then connecting it to the relay would engage the effect — or you could redesign this circuit to route some audio signals based on the input levels.


The pedal I stomp in the video is the MP-1 fuzz from Inductor Guitars, the EQTrigger pedal is connected to the extra output on a Boss TU-2 tuner and is reacting auto-magically to the change in guitar signal when I play louder or engage the fuzz.



Parts List

eqtrigger
Okay, so I didn’t spend a lot of time working out a clean circuit diagram — at least I didn’t use as much electrical tape in the diagram.

Arduino Sketch


#include <AudioAnalyzer.h>
Analyzer Audio = Analyzer(4,5,0);

int FreqVal[7];
int FreqThreshVal[7];

int switchPin = 3;
int switchValue = 0;

int relayPin = 2;

void setup()
{
  pinMode(relayPin, OUTPUT);
  pinMode(switchPin, INPUT);

  for(int i=0;i<7;i++)
    FreqThreshVal[i] = 512;

  //Serial.begin(57600);
  Audio.Init();
}

void loop()
{
  Audio.ReadFreq(FreqVal);//return 7 value of 7 bands pass filiter
                          //Frequency(Hz):63  160  400  1K  2.5K  6.25K  16K
                          //FreqVal[]:      0    1    2    3    4    5    6

  switchValue = digitalRead(switchPin);

  if(switchValue == HIGH)
  {
    for(int i=1;i<5;i++)
    {
       FreqThreshVal[i] = FreqVal[i];
       /*
       Serial.print(max((FreqVal[i]-100),0));

       if(i<6)
        Serial.print(",");
       else
        Serial.println(" SET ");
        */
    }
  }
  else
  {
    boolean thresholdMet = true;

    for(int i=1;i<5;i++)
    {
       //Serial.print(max((FreqVal[i]-100),0));

       if(FreqVal[i] < FreqThreshVal[i]-5)
         thresholdMet = false;

       /*
       if(i<6)
         Serial.print(",");
       else
         Serial.println(" READ ");
         */
    }

    if(thresholdMet == true)
    {
      //Serial.println(" MET ");
      digitalWrite(relayPin, HIGH);
    }
    else
    {
      digitalWrite(relayPin, LOW);
    }
  }
}

“Spaghetti” IP Cam / Arduino Motion Detect Sprinkler

arduino motion detect sprinkler


After a neighbourhood dog decided my front lawn was a fantastic place to poop on and his owners decided that they don’t care for bylaws I set upon finding a solution. Sure you could try cayenne pepper, mothballs, ammonia or even marking your own territory (take that!) but I already had an IP camera monitoring my front yard for security purposes, so I figured I’d just hook up an Arduino and a sprinkler valve. This yard defense solution has two added benefits, it keeps my lawn healthy (I can set up timed watering through this system) and it sends offending dogs home stinkin’ wet. From me having to shovel dookie off my lawn to negligent owners having to deal with wet dog — perfect.

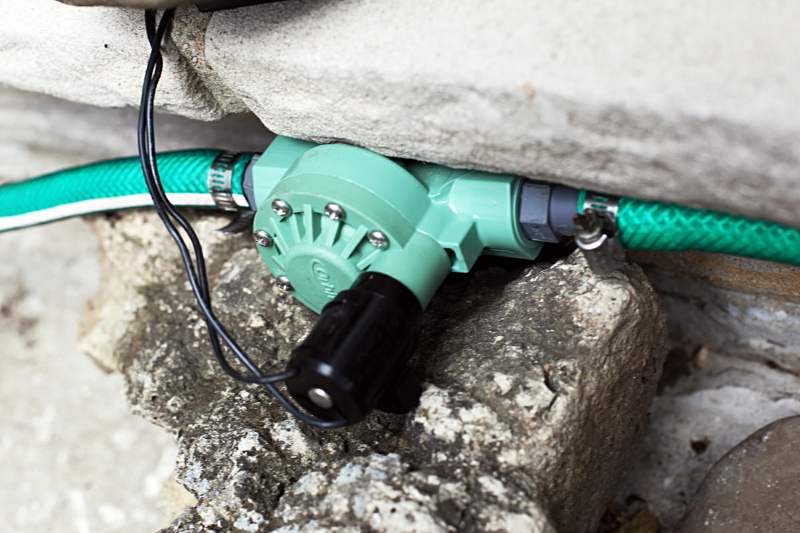

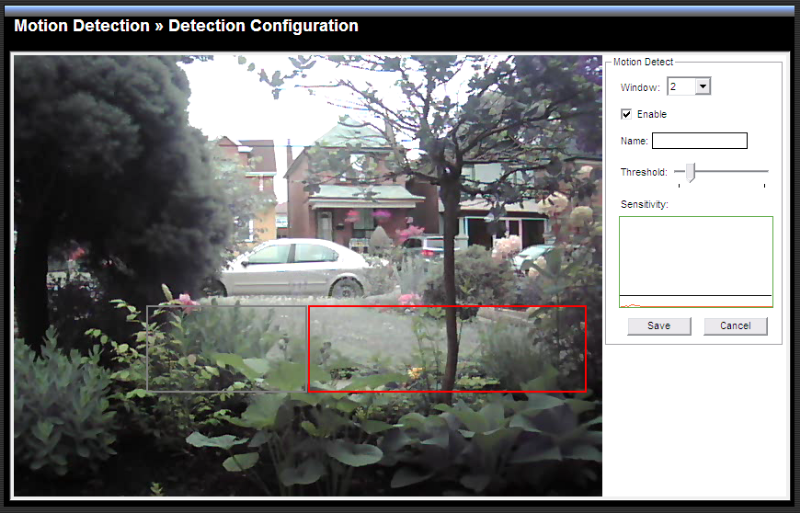

When the IP camera detects motion in configured regions of its video stream (the rectangles in the screenshot) it triggers one of its General Purpose Input/Output ports (GPIO). The Arduino is listening for this GPIO signal and once its received the Arduino triggers a relay which connects a 24v power supply to the sprinkler solenoid valve. The valve opens when 24v is applied to it and “sprinkles” whatever was responsible for the motion.

The TRENDnet IP camera I employed works great as it already records video of events to network or attached storage, sends email alerts with snapshots and allows manual triggering of its GPIO.

The TRENDnet monitoring plugin only works in IE but after some reverse engineering and C# coding I had an easy to use web interface for all browsers and mobile devices.

If there’s enough interest I’ll post circuit and wiring diagrams. Ensure the valves you get are non-latching 24v solenoids, some 9v valves seem tempting but are magnetic and require a more complex circuit.

Why Spaghetti? Watch more ATHF.

Parts


Update: Some folks have asked why not just trigger the valve relay directly from the GPIO on the camera. This could’ve been done, but then I wouldn’t have gotten as much control as I wanted. This way I can configure timing to prevent the sprinkler itself from setting off the motion detector, set up timed watering as well as trigger other devices at various timings (DSLR for reaction shots). Another addition may be an XBee based remote control or hardwired buttons for various functions.

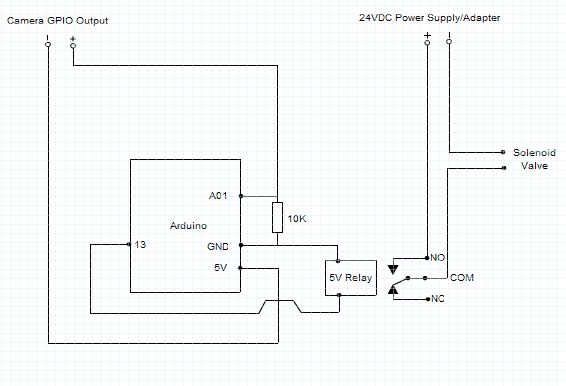

Update: I’ve added a quick circuit diagram and simple Arduino code.

Arduino Code


int gpioPin = 1;       			// GPIO input
int val = 0;           			// value read from GPIO input
int trigPin = 13;      			// solenoid relay output

void setup()
{
	pinMode(trigPin, OUTPUT);
}

void loop()
{
  val = analogRead(gpioPin);		// read the GPIO input pin
  if (val > 500)
  {
	// GPIO triggered, open the valve
	digitalWrite(trigPin, HIGH);
  }
  else
  {
	// GPIO off, close the valve
	digitalWrite(trigPin, LOW);
  }
}

Video: Slow-motion speed bag and affordable high-speed video
